Mastering Databricks — Day 1 (Parquet, SQL Warehouse, Volumes, and Delta)

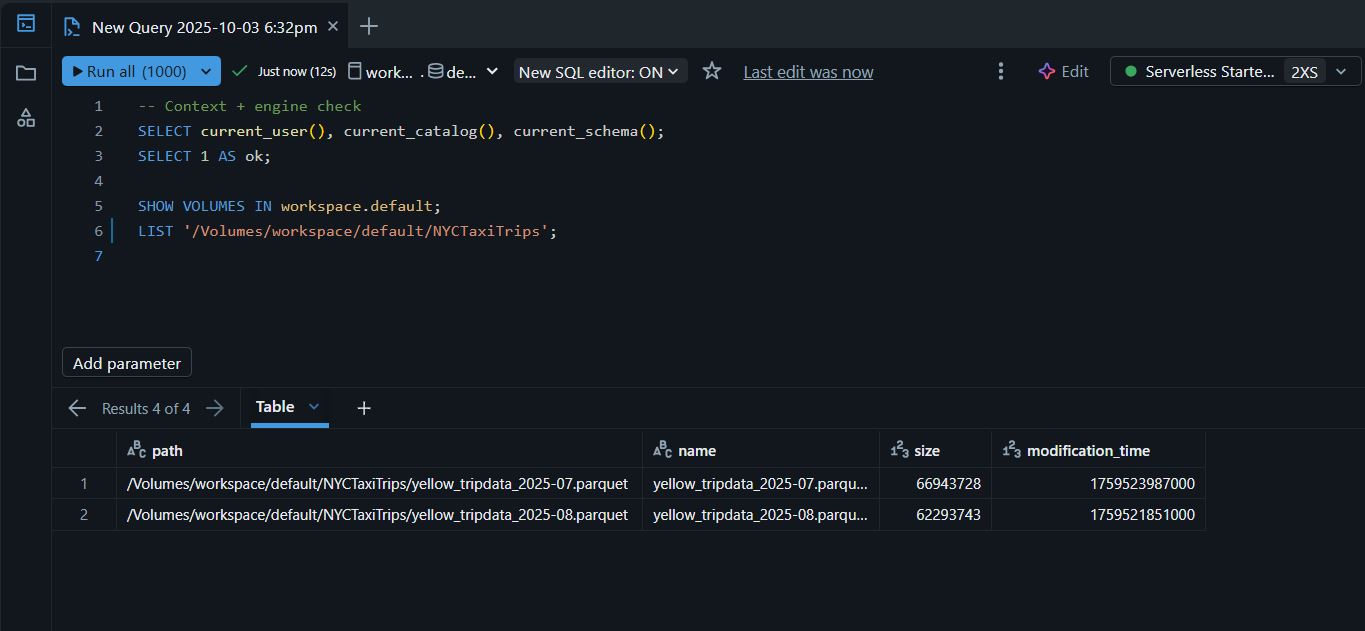

Step 1 — Open SQL Editor & verify connection to the SQL Warehouse “Serverless Starter Warehouse 2XS”

-- Context + engine check
SELECT current_user(), current_catalog(), current_schema();
SELECT 1 AS ok;

SHOW VOLUMES IN workspace.default;
LIST '/Volumes/workspace/default/NYCTaxiTrips';

---

⬆ Back to Top

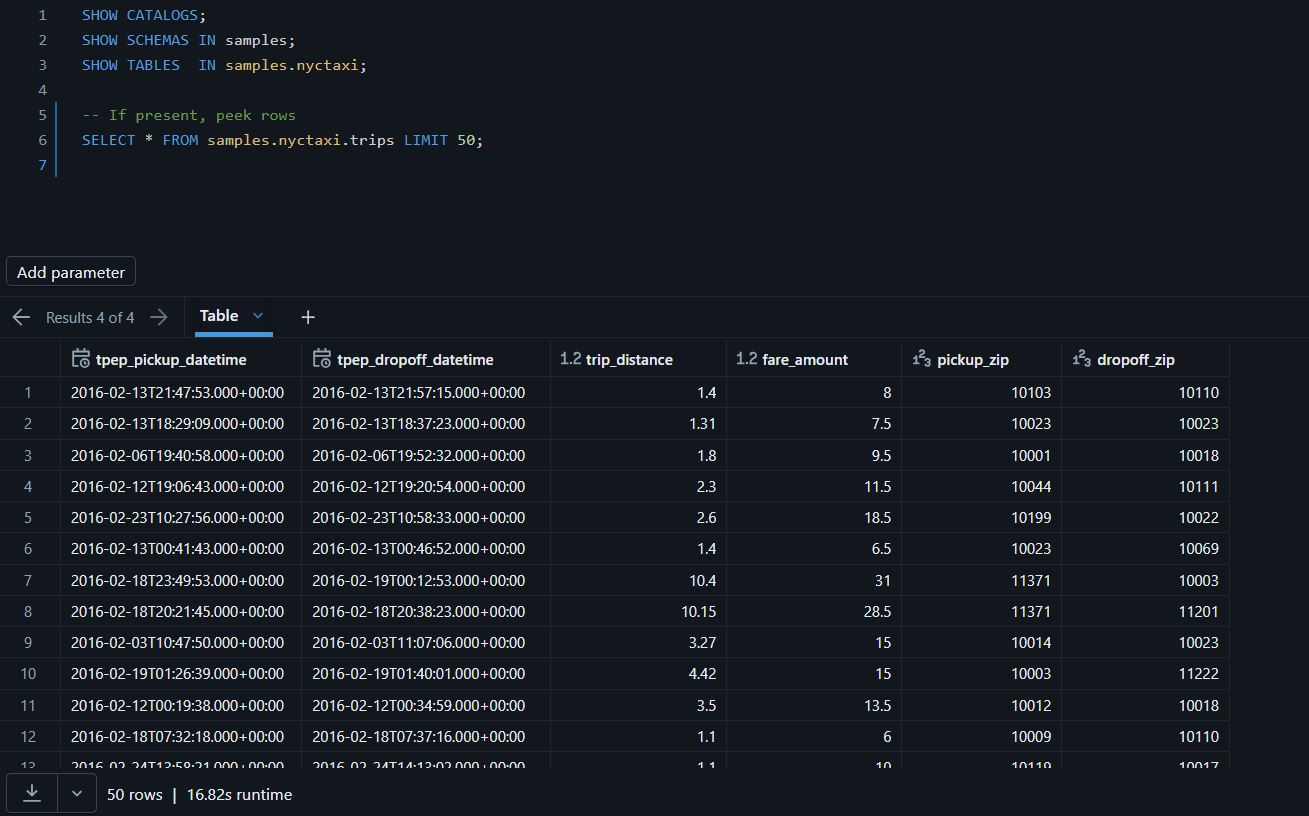

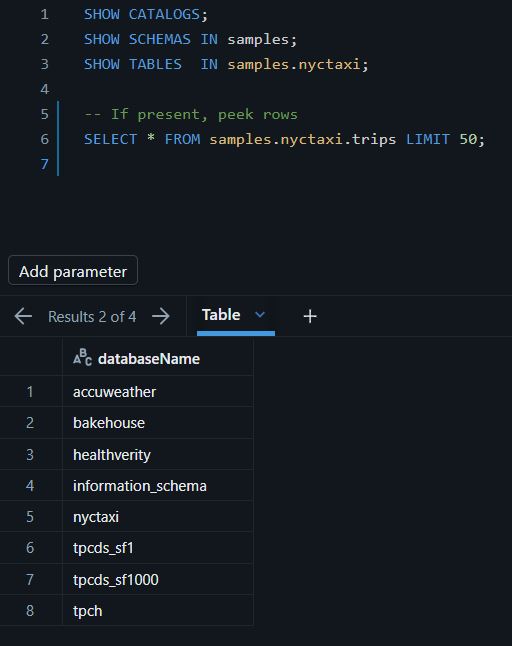

Step 2 — Browse the Samples Catalog

SHOW CATALOGS;
SHOW SCHEMAS IN samples;
SHOW TABLES  IN samples.nyctaxi;

SELECT * FROM samples.nyctaxi.trips LIMIT 50;

---

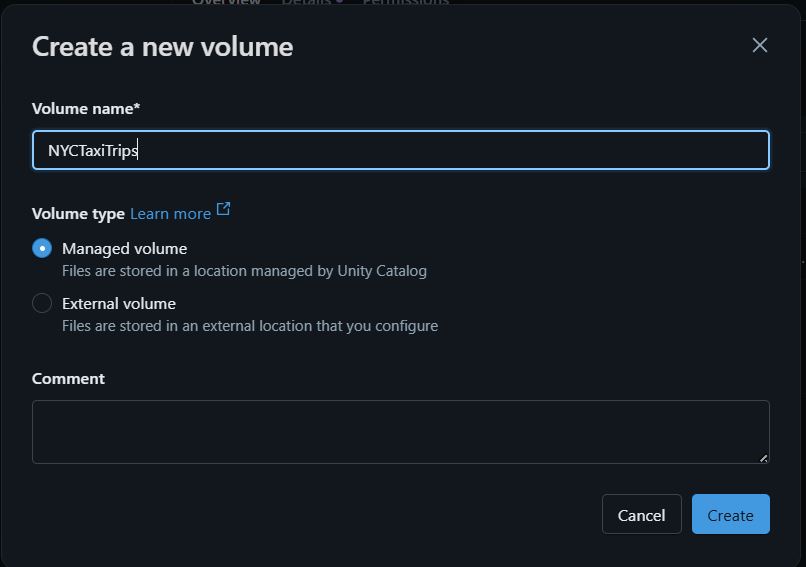

Step 3 — Create a Managed Volume for raw files

1. Path: Catalog Explorer ➜ workspace ➜ Create ➜ Volume / Table / Model
2. Pick Schema: default ➜ Type: Managed ➜ Name: NYCTaxiTrips
3. Files land under: /Volumes/workspace/default/NYCTaxiTrips/…

SHOW VOLUMES IN workspace.default;

---

⬆ Back to Top

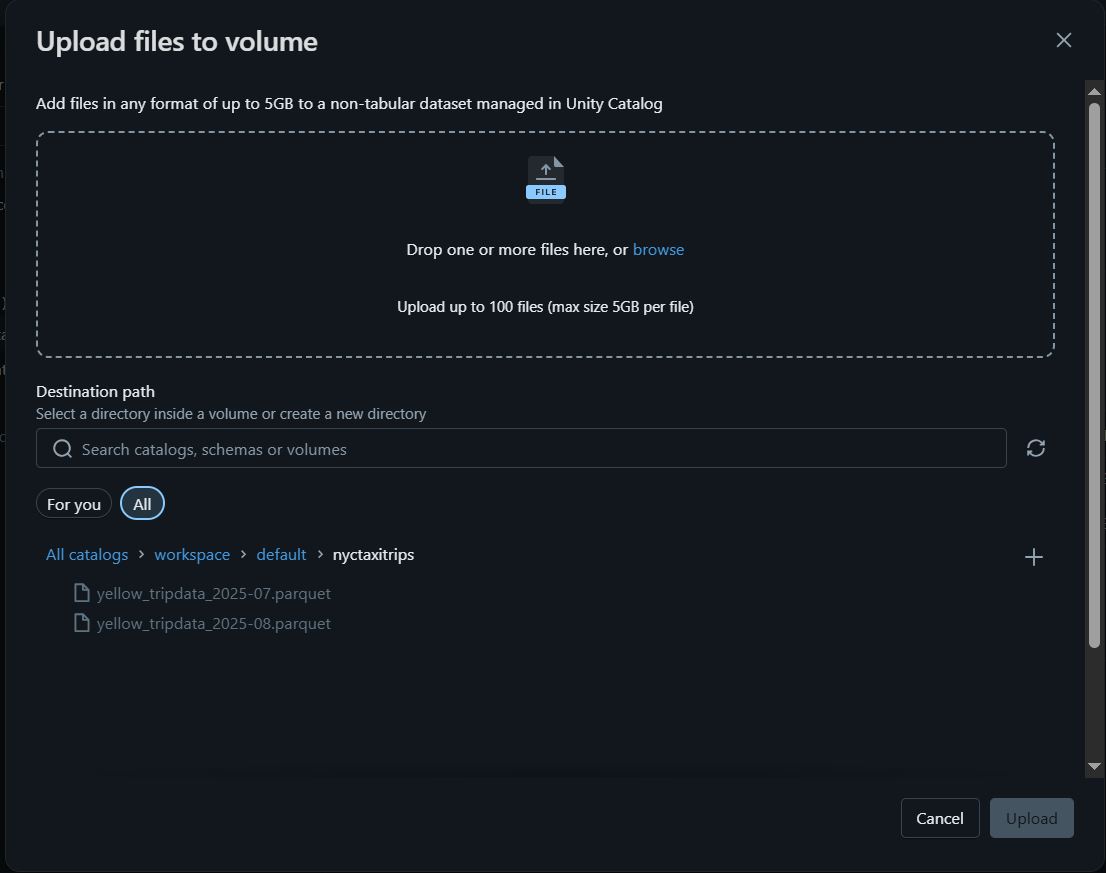

Step 4 — Upload Parquet files into the Volume (UI)

Catalog ➜ Volume (nyctaxitrip) ➜ Upload to volume

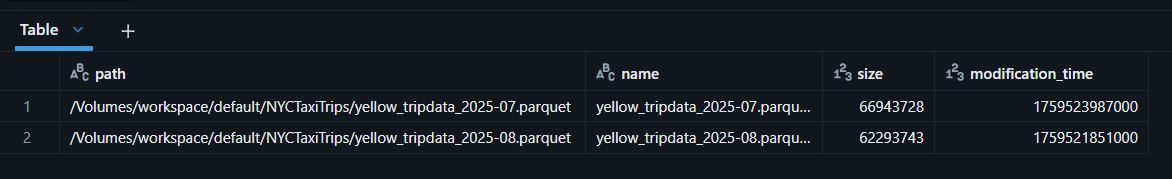

Confirm files landed

LIST '/Volumes/workspace/default/NYCTaxiTrips';

---

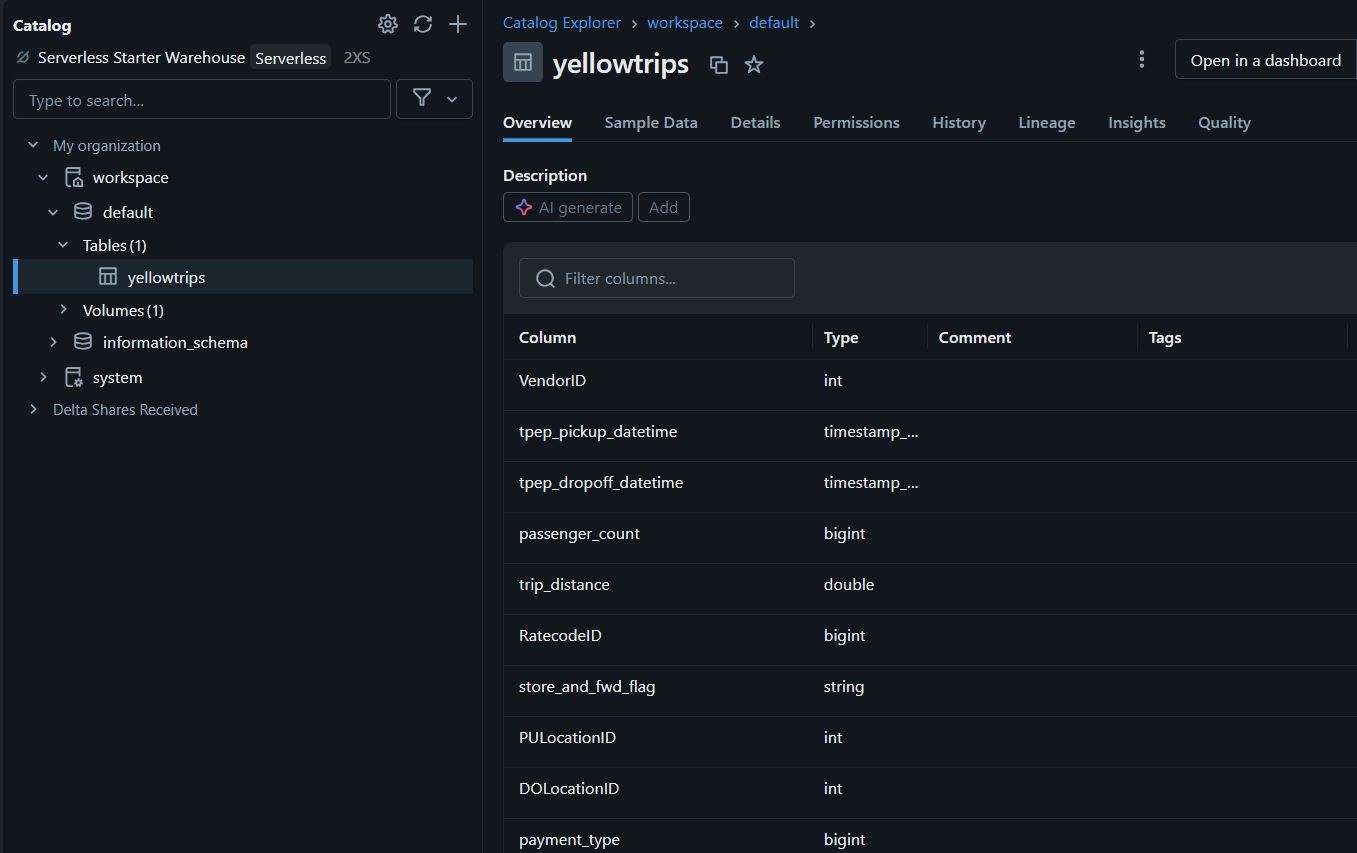

Step 5 — CTAS from Parquet → Delta (August 2025)

USE CATALOG workspace;
USE SCHEMA default;

CREATE OR REPLACE TABLE yellowtrips
USING DELTA AS
SELECT *
FROM read_files(
  '/Volumes/workspace/default/NYCTaxiTrips/yellow_tripdata_2025-08.parquet',
  format => 'parquet'
);

This is Databricks SQL (ANSI SQL with Databricks extensions). read_files() is a table-valued function that reads files from a Unity Catalog Volume or external location, and format => ‘parquet’ uses Databricks’ named-argument syntax (=>).

---

⬆ Back to Top

Step 6 — Baseline validation of the new table

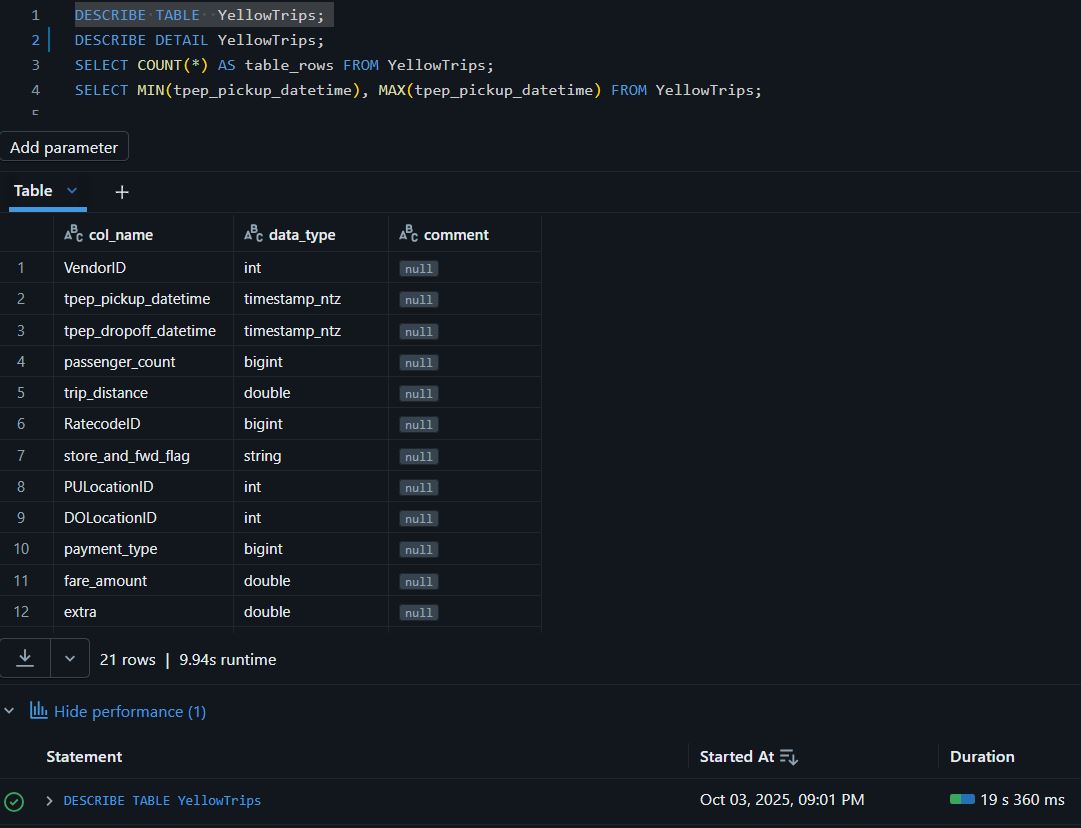

DESCRIBE TABLE  YellowTrips;

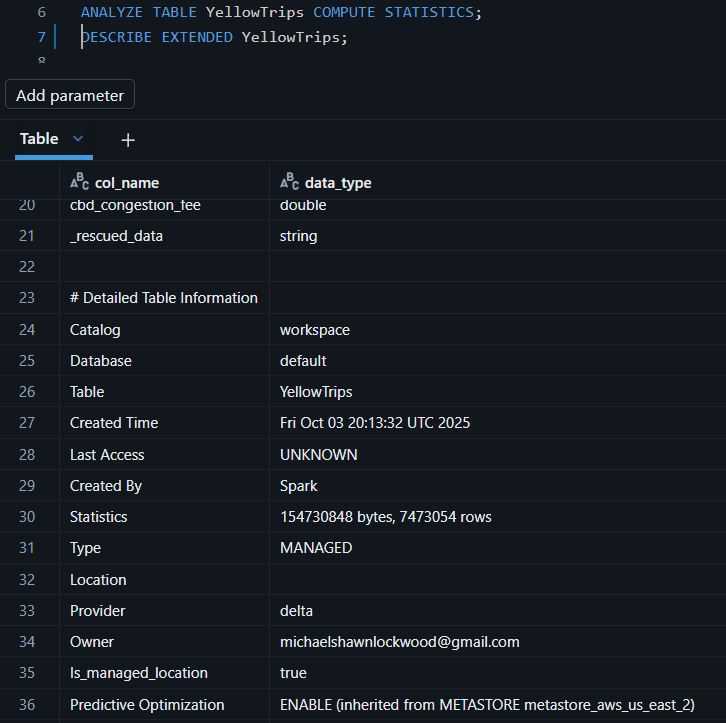

ANALYZE TABLE YellowTrips COMPUTE STATISTICS;
DESCRIBE EXTENDED YellowTrips;

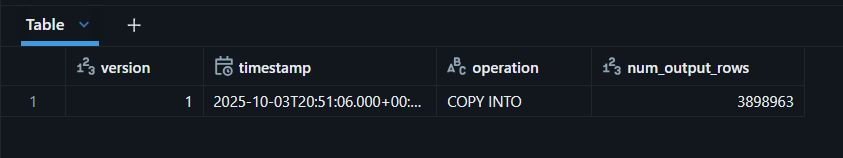

You can query DESCRIBE HISTORY like a table, then extract operationMetrics fields (they’re strings in a MAP) and cast them. Here are the patterns:

SELECT
  version,
  timestamp,
  operation,
  CAST(operationMetrics['numOutputRows'] AS BIGINT) AS num_output_rows
FROM (DESCRIBE HISTORY YellowTrips)
WHERE operation IN (
  'COPY INTO',
  'WRITE',
  'CREATE TABLE AS SELECT',
  'REPLACE TABLE AS SELECT'
)
ORDER BY version DESC
LIMIT 10;

---

Step 7 — File vs. Table cross-check (row counts)

-- File (Parquet) count
SELECT COUNT(*) AS file_rows
FROM read_files(
  '/Volumes/workspace/default/NYCTaxiTrips/yellow_tripdata_2025-08.parquet',
  format => 'parquet'
);

-- Delta table count
SELECT COUNT(*) AS table_rows FROM YellowTrips;

---

⬆ Back to Top

Step 8 — Append the July 2025 file (COPY INTO)

COPY INTO YellowTrips
  FROM '/Volumes/workspace/default/NYCTaxiTrips/yellow_tripdata_2025-07.parquet'
  FILEFORMAT = PARQUET;

-- Audit trail of the load
DESCRIBE HISTORY YellowTrips;

---

Step 9 — Profile (by month)

SELECT date_trunc('month', tpep_pickup_datetime) AS month,
       COUNT(*) AS trips
FROM YellowTrips
GROUP BY 1
ORDER BY 1;

Step 10 - Persist an audit table

CREATE SCHEMA IF NOT EXISTS etl_metrics;
CREATE TABLE IF NOT EXISTS etl_metrics.yellowtrips_loads (
  version BIGINT, ts TIMESTAMP, op STRING,
  rows BIGINT, bytes BIGINT
);

INSERT INTO etl_metrics.yellowtrips_loads
SELECT
  version,
  timestamp AS ts,
  operation AS op,
  TRY_CAST(element_at(operationMetrics,'numOutputRows')  AS BIGINT) AS num_output_rows,
  TRY_CAST(element_at(operationMetrics,'numOutputBytes') AS BIGINT) AS num_output_bytes
FROM (DESCRIBE HISTORY YellowTrips) h
WHERE h.operation IN ('COPY INTO','WRITE','CREATE TABLE AS SELECT','REPLACE TABLE AS SELECT')
  AND h.version > COALESCE((SELECT MAX(version) FROM etl_metrics.yellowtrips_loads), -1);

SELECT * FROM etl_metrics.yellowtrips_loads;

---

⬆ Back to Top

Step 11 — Day-1 Wrap-Up & Next

What is proven: warehouse online, catalog browsing, Volume staging, CTAS to Delta, append via COPY INTO, and validation queries.

Next session (Phase 3/4):

1. Build an explicit-schema twin (YellowTrips_Strict) and compare types.
2. Start tuning: OPTIMIZE YellowTrips ZORDER BY (tpep_pickup_datetime); then measure before/after.
3. Test Time Travel and DESCRIBE HISTORY to illustrate ACID versioning.
